Belt Conveyors
1.Light Duty Belt Conveyor
Description:
The light duty belt conveyors are designed for light duty cargo transportation.With the aluminum alloy frame,the self weight is also light.The max loading capacity is 80 kgs per meter
Characteristic:
1.Economic and practical,smart structure
2.Low noise,smooth transportation
3.SS frame is also available
4.Drive method:head drive/intermediate drive
Standard Specification(in mm) :
| Type | Width | Length | Frame Height | Speed | Capacity | Moter | Power |
| A | 100-400 | 500-2500 | 34/40 | 0-25m/min | 10-30kgs | 40-120W | AC220V |
| B | 90-290 | 1000-3000 | 34/40 | 0-25m/min | 10-50kgs | 60-180W | AC220V |
| C | 200-800 | 1000-6000 | 40/60/80 | 0-30m/min | 10-80kgs | 60-400W | AC220/380V |

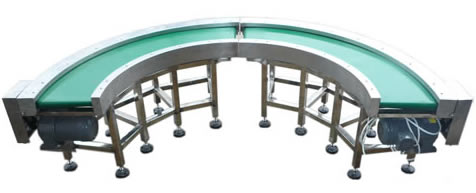

2.Medium Duty Belt Conveyor
Description:
The medium duty belt conveyors are designed for all kinds of medium duty cargo transportation,widely used for industrial assembling ,testing line.The max loading capcity is normally 120kgs per meter.
Characteristic:
1.Economic and practical,high performance cost ratio.
2.Modular design,easy assembling
3.Telescopic type is also available
4.Drive method:head drive/intermediate drive
Standard Specification(in mm):
| Type | Width | Length | Frame Height | Speed | Capacity | Moter | Power |
| N/A | 200-1200 | 300-12000 | 40/60/80 | 2.5-30m/min | 10-120kgs | 60-1100W | AC220/380V |
3.Heavy Duty Belt Conveyor
Description:
The heavy duty belt conveyors are widely used for heavy duty cargo transportation.The max loading capcity is normally 2500kgs per meter.
Characteristic:
1.Large loading capacity
2.Modular design,easy assembling
3.Low noise,high transport efficiency
4.Drive method:intermediate drive
Standard Specification(in mm):| Type | Width | Length | Frame Height | Speed | Capacity | Moter | Power |
| N/A | 200-2000 | 1000-40000 | 30/40/50 | 0-50m/min | 200-2500kg | 750-3000W | AC220/380V |

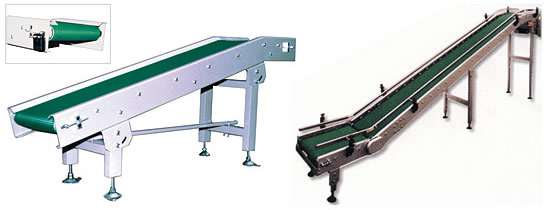

3.Inclining Belt Conveyor
Description:
The inclining belt conveyor can continuously rise and decline the cargo between different height layers.It can smoothly connect the horizontal roller or chain conveyors.
Characteristic:
1.Rise and decline the cargo
2.Drive method:head drive
Standard Specification(in mm):| Length | Height | Width | Speed | Power |
| 3000-20000mm | 5-30°,500mm | 200-2000mm | 15-36m/min | 0.37-3kw |
