Sprocket Rollers (L Series)
 |
 |
|

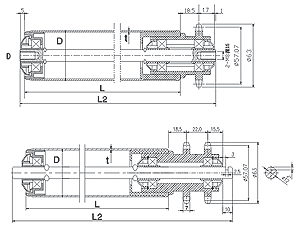

| Model:LRSP/LRDP Series | ||
| Structure:Use precise bearing and wearproof engineering plastic sprocket | ||
| Characteristic:Werproof,low noise | ||
| Purpose:Suitable for chain driven conveyors | ||
| Material:Carbon Steel / Stainless Steel / Aluminum Alloy / Plastic coated steel | ||
| Surface:Galvanized / Chromed / Gel casting / Plastic Coated | ||
| Standard Specification(in mm): | ||
| Tube Diameter | Shaft diameter | Thickness (t) | Sprocket | L |
| ø50 | ø12 | 1.5/2.0 | 08B11T/14T | 100-1200 |
| ø60 | ø12 | 2.0/3.0 | 08B11T/14T | 100-1500 |
 |
 |
|

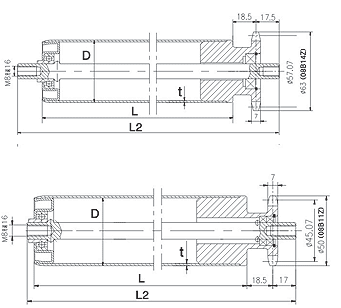

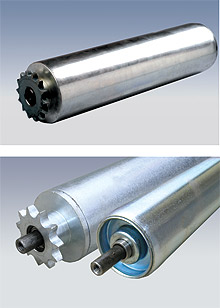

| Model:LRSS Series | ||
| Structure:Use precise bearing and steel sprocket | ||
| Characteristic:Large capacity,low noise,durable | ||
| Purpose:Suitable for chain driven conveyors | ||
| Material:Carbon Steel / Stainless Steel / Aluminum Alloy | ||
| Surface:Galvanized / Chromed / Gel casting / Plastic Coated | ||
| Standard Specification(in mm): | ||
| Tube Diameter | Shaft diameter | Thickness (t) | Sprocket | L |
| ø38 | ø12 | 1.5 | 06B11T/13T | 100-1200 |
| ø42 | ø12 | 1.5 | 06B11T/13T | 100-1200 |
| ø50 | ø12 | 1.5/2.0 | 08B11T/14T | 100-1500 |
| ø57 | ø12 | 1.5/2.0 | 08B11T/14T | 100-1500 |
| ø60 | ø12/ø15 | 2.0/3.0 | 08B11T/14T | 100-1500 |
| ø76 | ø20 | 3.0/4.0 | 10A13T | 100-2000 |
| ø89 | ø20 | 3.0/4.0 | 10A13T | 100-2000 |
| ø108 | ø20 | 4.0 | 10A13T | 100-2000 |
 |
 |
|

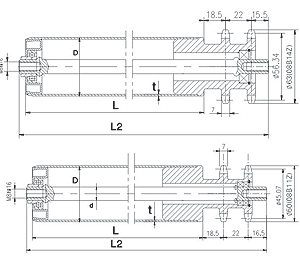

| Model:LRDS Series | ||
| Structure:Use precise bearing and steel sprocket | ||
| Characteristic:Large capacity,low noise,durable | ||
| Purpose:Suitable for chain driven conveyors | ||
| Material:Carbon Steel / Stainless Steel / Aluminum Alloy | ||
| Surface:Galvanized / Chromed / Gel casting / Plastic Coated | ||
| Standard Specification(in mm): | ||
| Tube Diameter | Shaft diameter | Thickness (t) | Sprocket | L |
| ø38 | ø12 | 1.5 | 06B11T/13T | 100-1200 |
| ø42 | ø12 | 1.5 | 06B11T/13T | 100-1200 |
| ø50 | ø12 | 1.5/2.0 | 08B11T/14T | 100-1500 |
| ø57 | ø12 | 1.5/2.0 | 08B11T/14T | 100-1500 |
| ø60 | ø12/ø15 | 2.0/3.0 | 08B11T/14T | 100-1500 |
| ø76 | ø20 | 3.0/4.0 | 10A13T | 100-2000 |
| ø89 | ø20 | 3.0/4.0 | 10A13T | 100-2000 |
| ø108 | ø20 | 4.0 | 10A13T | 100-2000 |
 |
 |
|

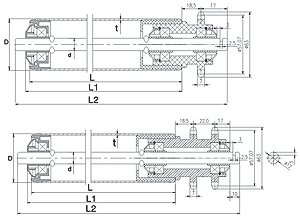

| Model:LRSP(A)/LRDP(A) Series | ||
| Structure:Use precise bearing and wearproof engineering plastic sprocket | ||
| Characteristic:Werproof,low noise | ||
| Purpose:Suitable for chain driven conveyors,Accumulating | ||
| Material:Carbon Steel / Stainless Steel / Aluminum Alloy / Plastic coated steel | ||
| Surface:Galvanized / Chromed / Gel casting / Plastic Coated | ||
| Standard Specification(in mm): | ||
| Tube Diameter | Shaft diameter | Thickness (t) | Sprocket | L |
| ø50 | ø12 | 1.5/2.0 | 08B11T/14T | 100-1500 |
| ø60 | ø12 | 2.0/3.0 | 08B11T/14T | 100-1500 |
 |
 |
|

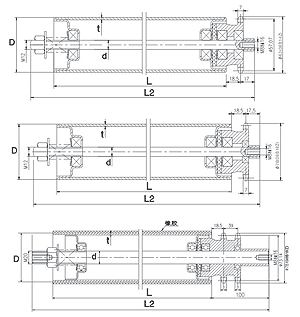

| Model:LRSS(A)/LRDS(A) Series | ||
| Structure:Use precise bearing and steel sprocket | ||
| Characteristic:Large capacity,low noise,durable,Accumulating | ||
| Purpose:Suitable for chain driven conveyors | ||
| Material:Carbon Steel / Stainless Steel / Aluminum Alloy | ||
| Surface:Galvanized / Chromed / Gel casting / Plastic Coated | ||
| Standard Specification(in mm): | ||
| Tube Diameter | Shaft diameter | Thickness (t) | Sprocket | L |
| ø50 | ø12 | 1.5/2.0 | 08B11T/14T | 100-1500 |
| ø60 | ø12/ø15 | 2.0/3.0 | 08B11T/14T | 100-1500 |
| ø76 | ø20 | 3.0/4.0 | 10A14T | 100-2000 |
| ø89 | ø20 | 3.0/4.0 | 10A14T | 100-2000 |
 |
 |
|
| Model:LRSPT(A)/LRDPT(A) Series | ||
| Structure:Use precise bearing and plastic coated steel sprocket | ||
| Characteristic:Low noise,durable,Accumulating | ||
| Purpose:Suitable for buffer conveyors,medium duty curved conveyors | ||
| Standard Specification(in mm): | ||
| Small End | Taper | Sprocket | Shaft dia | Big End Diameter | |||||
| L=200 | L=300 | L=400 | L=500 | L=600 | L=700 | ||||
| ø50 | 3.6° | 08B14T | ø12 | 62.6 | 68.9 | 75.2 | 81.5 | 87.5 | 94.1 |
 |
 |
|

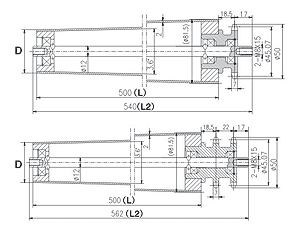

| Model:LRSST(A)/LRDST(A) Series | ||
| Structure:Use precise bearing and steel sprocket | ||
| Characteristic:Large capacity,werproof,low noise,durable,Accumulating | ||
| Purpose:Suitable for heavy duty curved roller conveyors | ||
| Standard Specification(in mm): | ||
| Small End | Taper | Sprocket | Shaft dia | Big End Diameter | |||||
| L=200 | L=300 | L=400 | L=500 | L=600 | L=700 | ||||
| ø42 | 3.6° | 08B14T | ø12 | 54.6 | 60.9 | 67.2 | 73.5 | 79.8 | 86.1 |
| ø50 | 10A13T | 62.6 | 68.9 | 75.2 | 81.5 | 87.5 | 94.1 | ||
